Next Gen Dino Paoli Wheel Gun
Project Outline
Advance the Dino Paoli wheel gun line with next-gen aesthetics while simplifying the design to address the issue of multiple modifications.
Date
Summer 2023

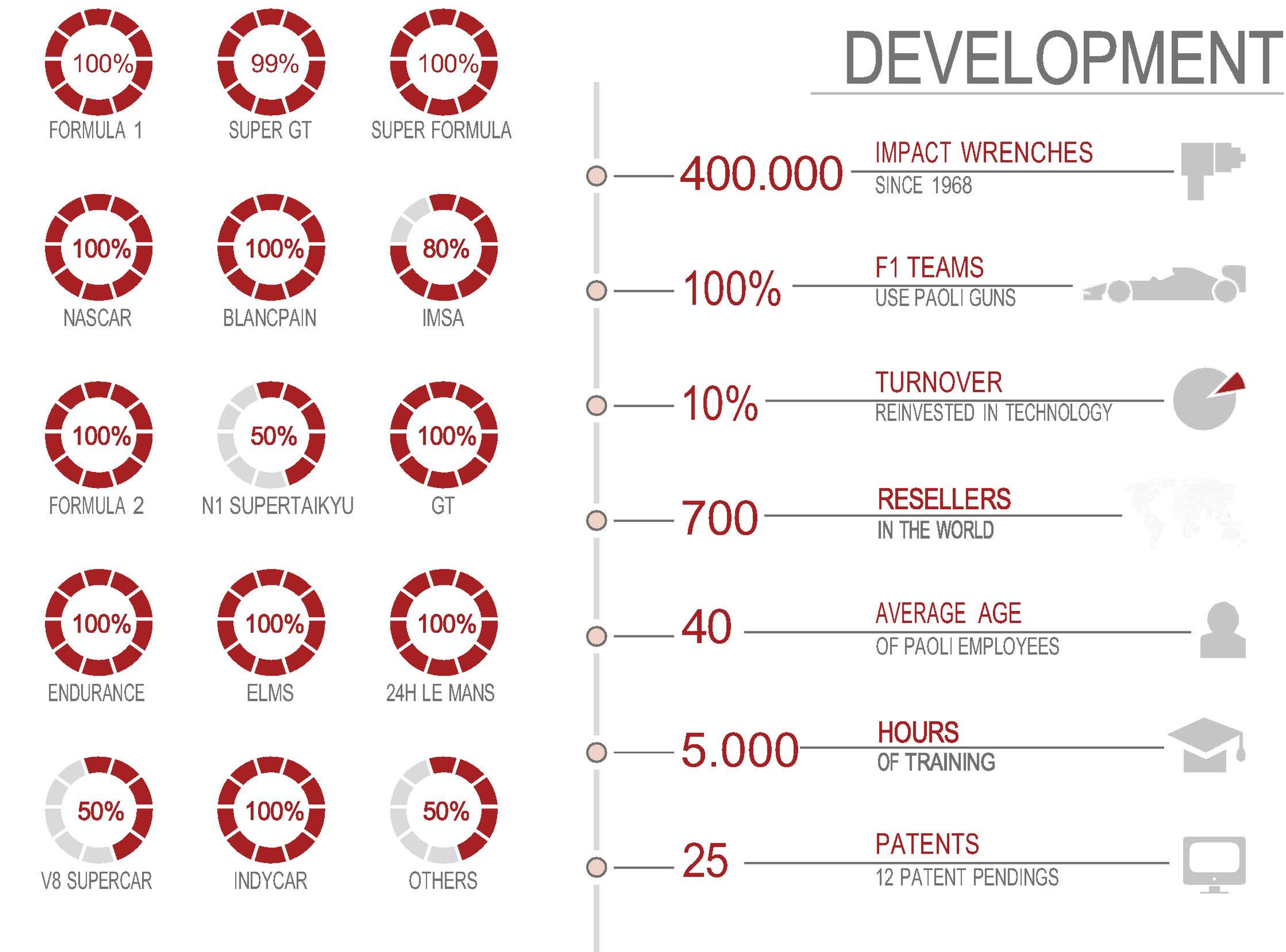

Dino Paoli is the lead manufacturer specializing in pneumatic powered wrenches. Paoli is responsible for providing high quality products for over 14 racing circuits around the world.
Supersport Nextgen
Market Analysis
$$$
Red Devil
$$
DP 6000
$$
Opportunity Area
???
Hurricane 2.0
$$$
4Bike
$$

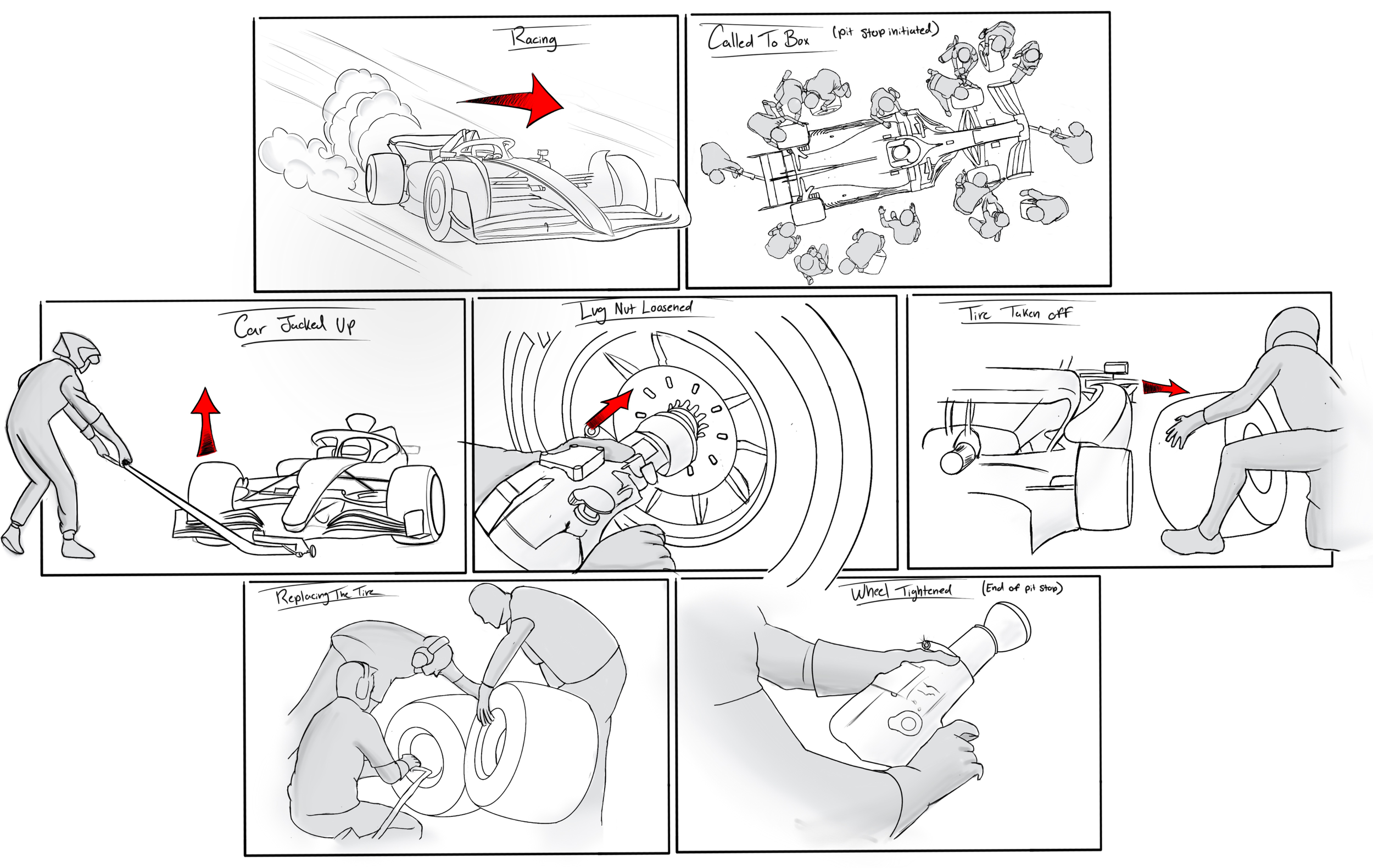

Storyboarding
The timeliness of a pit stop is critical to a team's finishing performance, where every second plays a decisive role in achieving success on the track.
Cushioning item placed for the users comfort
Pain Points
Carbon Fiber elongated neck for better grip
Existing main body has too heavy of a material

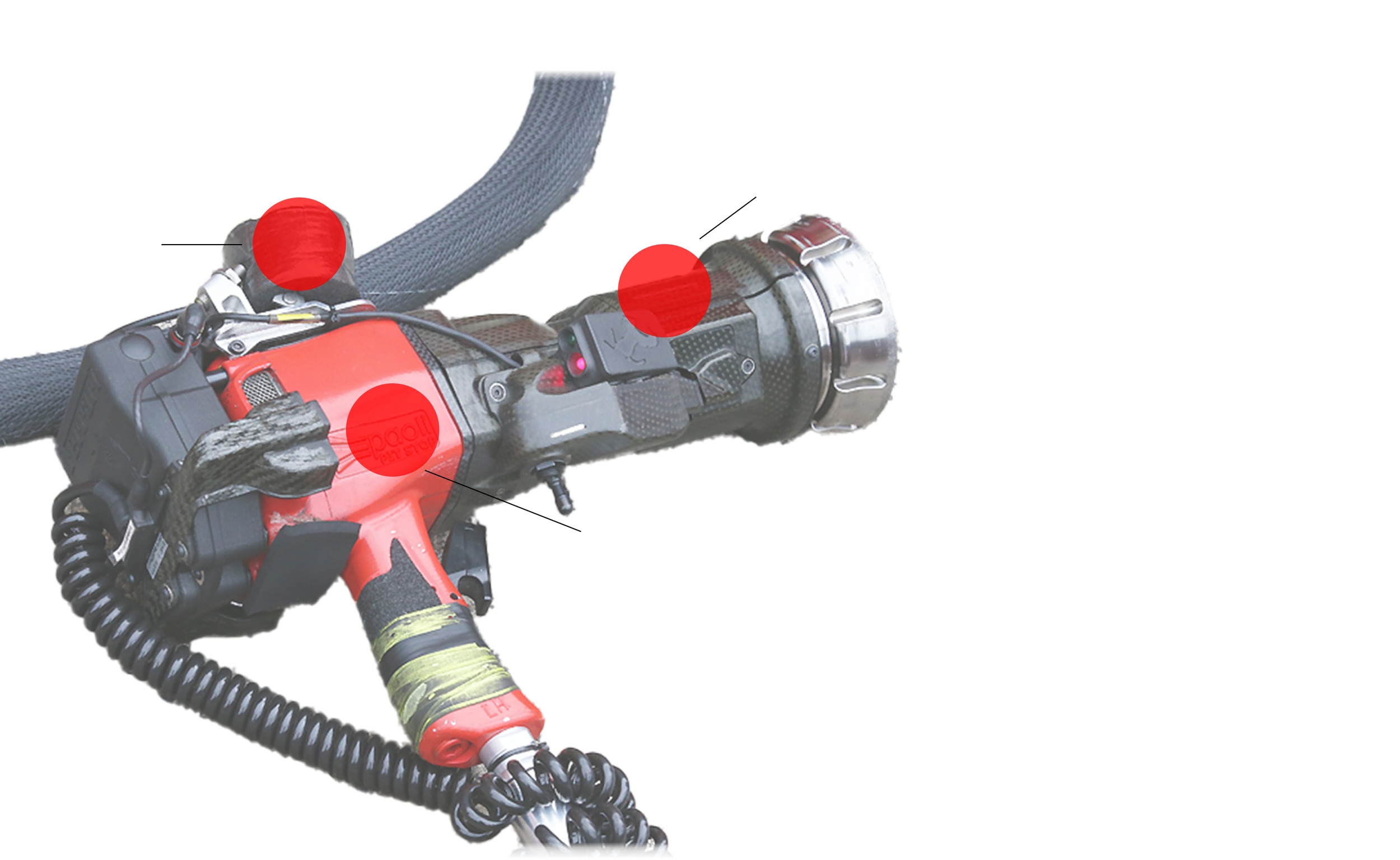

This is one of the many pit guns made by Dino Paoli. But this is not the base model, it has been modified to meet the users needs.
These modifications are implemented to help aid the pain points in the existing product.

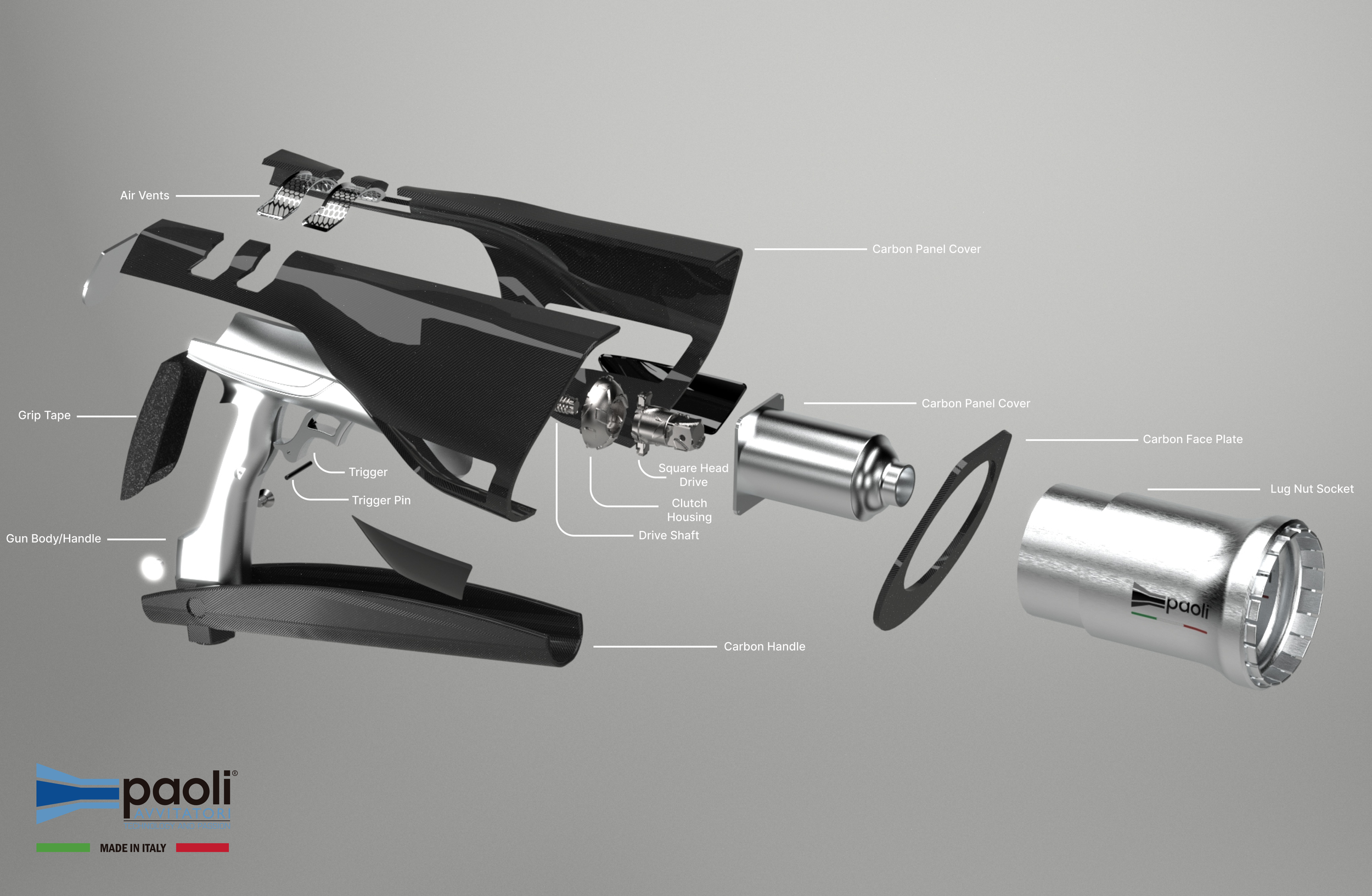

Internal Development

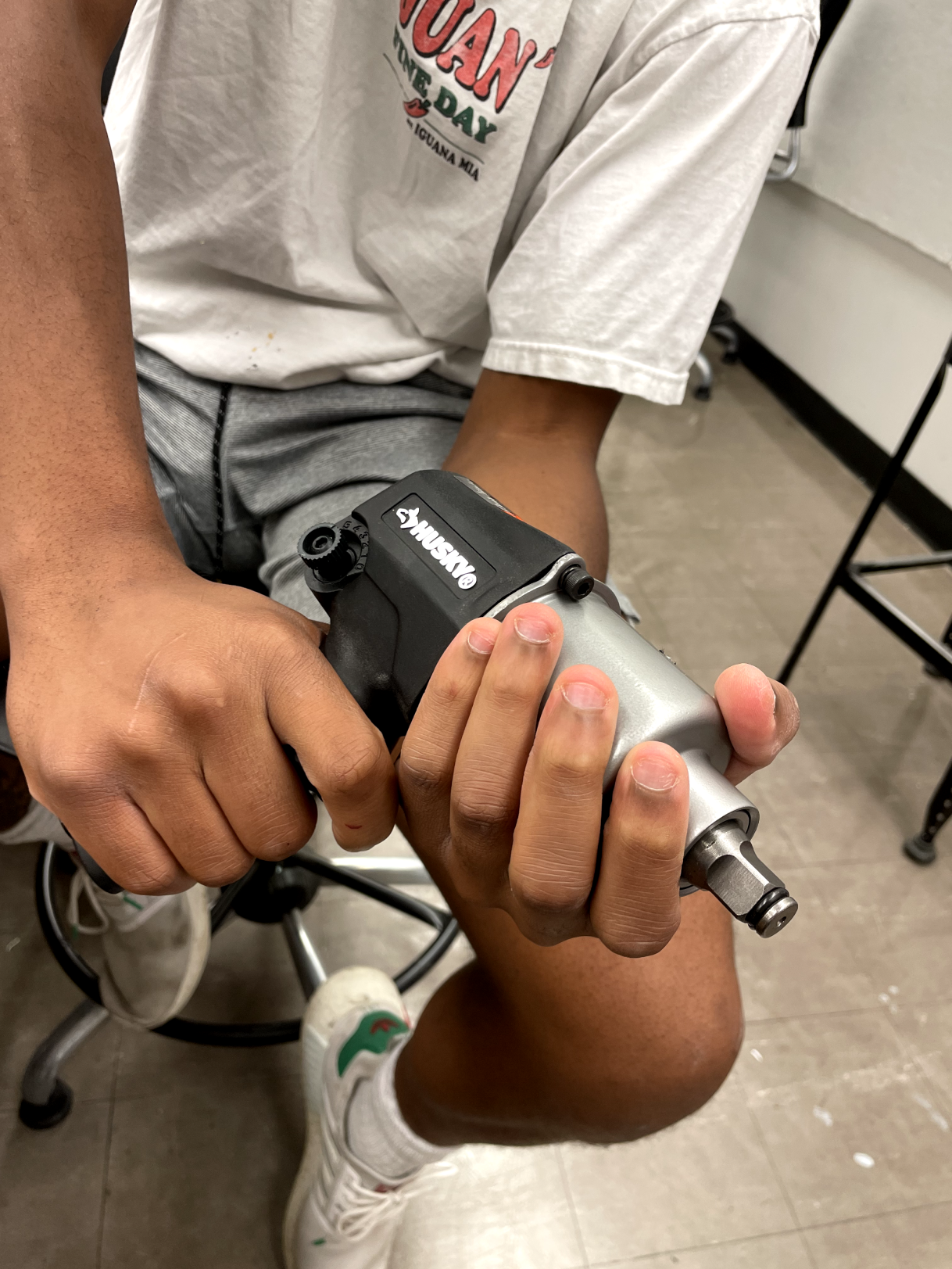

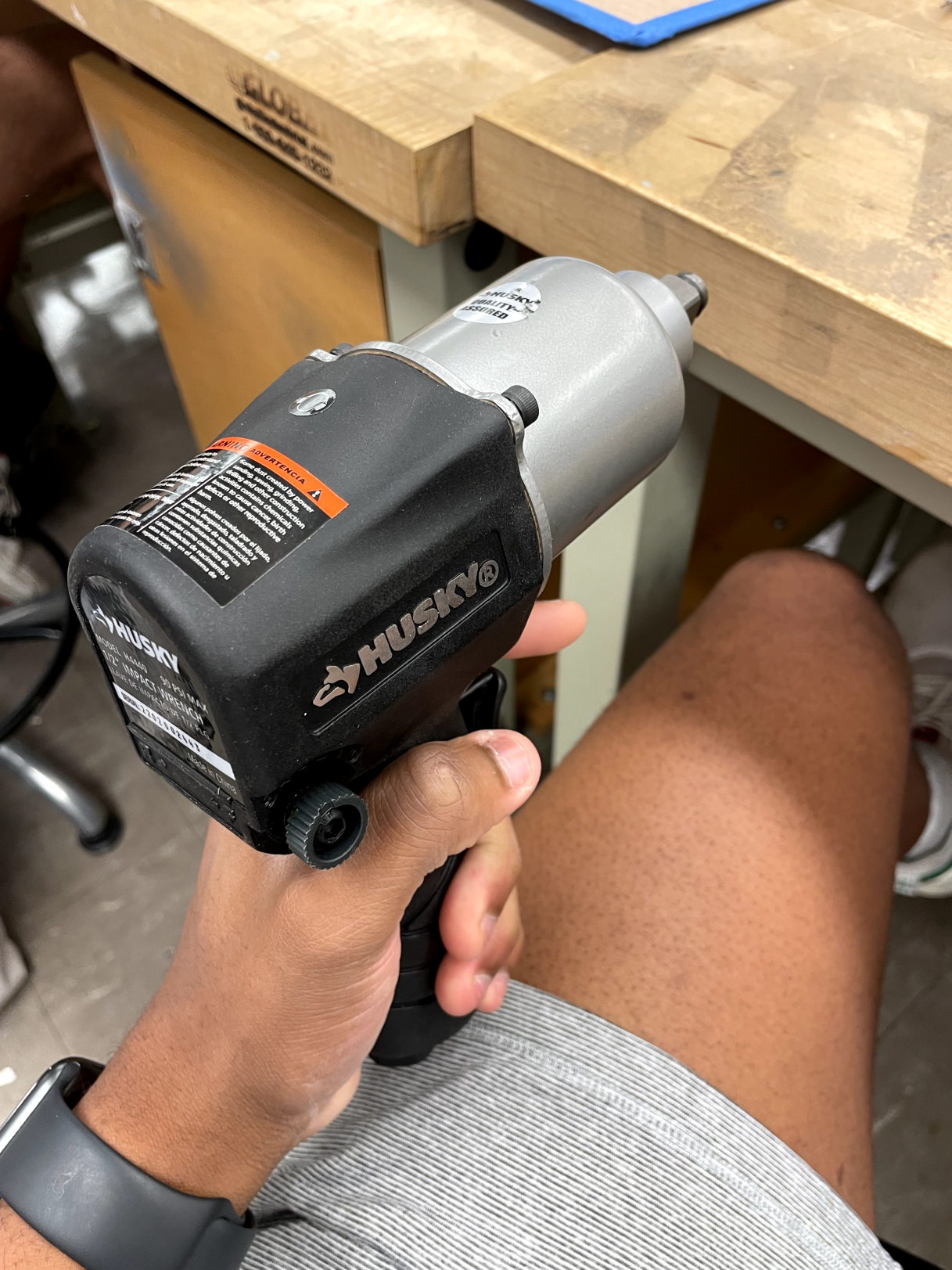

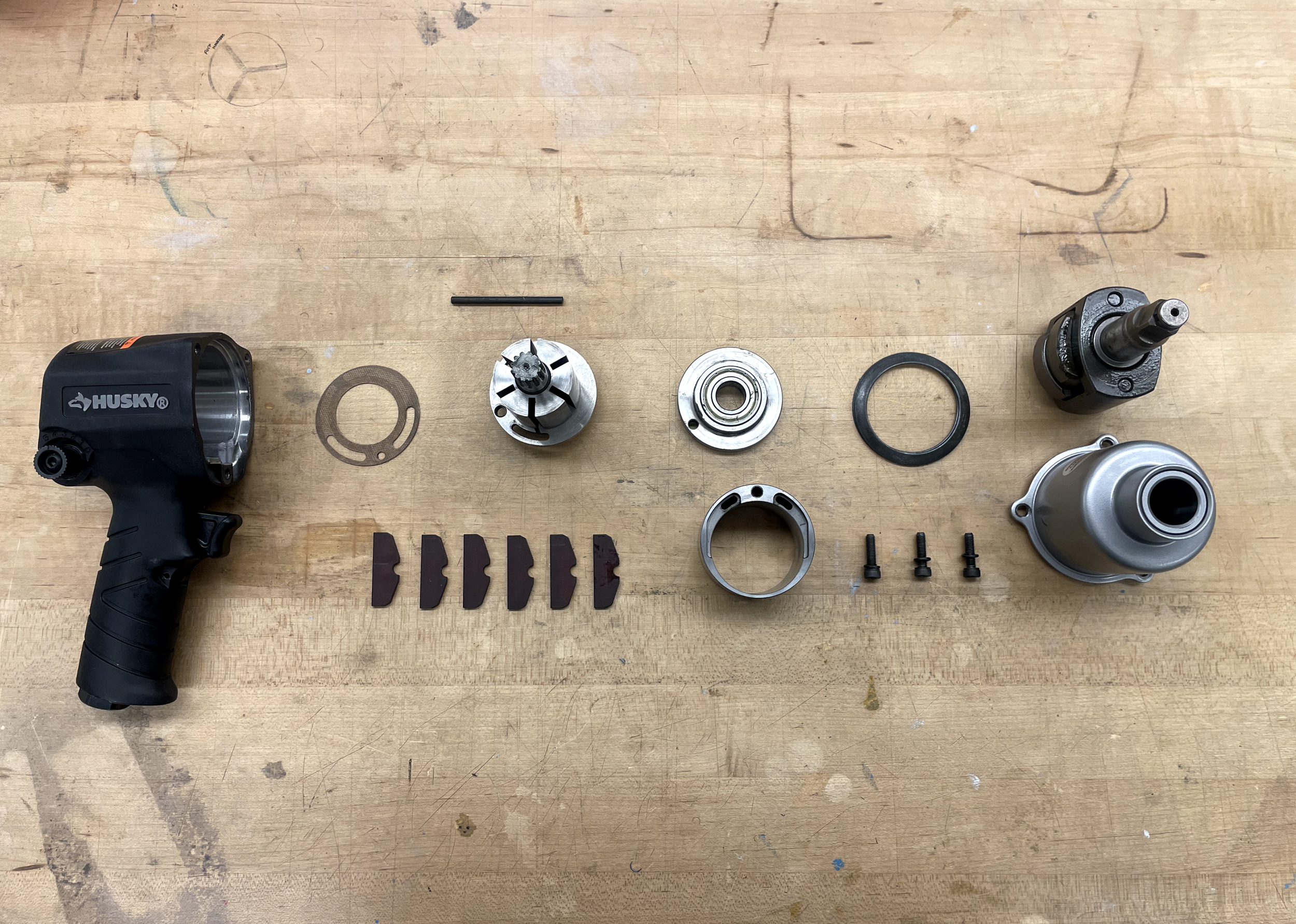

Buying an affordable version of the product to understand the existing internals and mechanisms before starting the design process.
Create a lightweight tool to help lighten the weight for UX
Design Objectives
Maintain the functionality of the original object
Pushing the aesthetics of the brand to create a next gen product
Making the design more ergonomic and comfortable for the user
Aesthetics

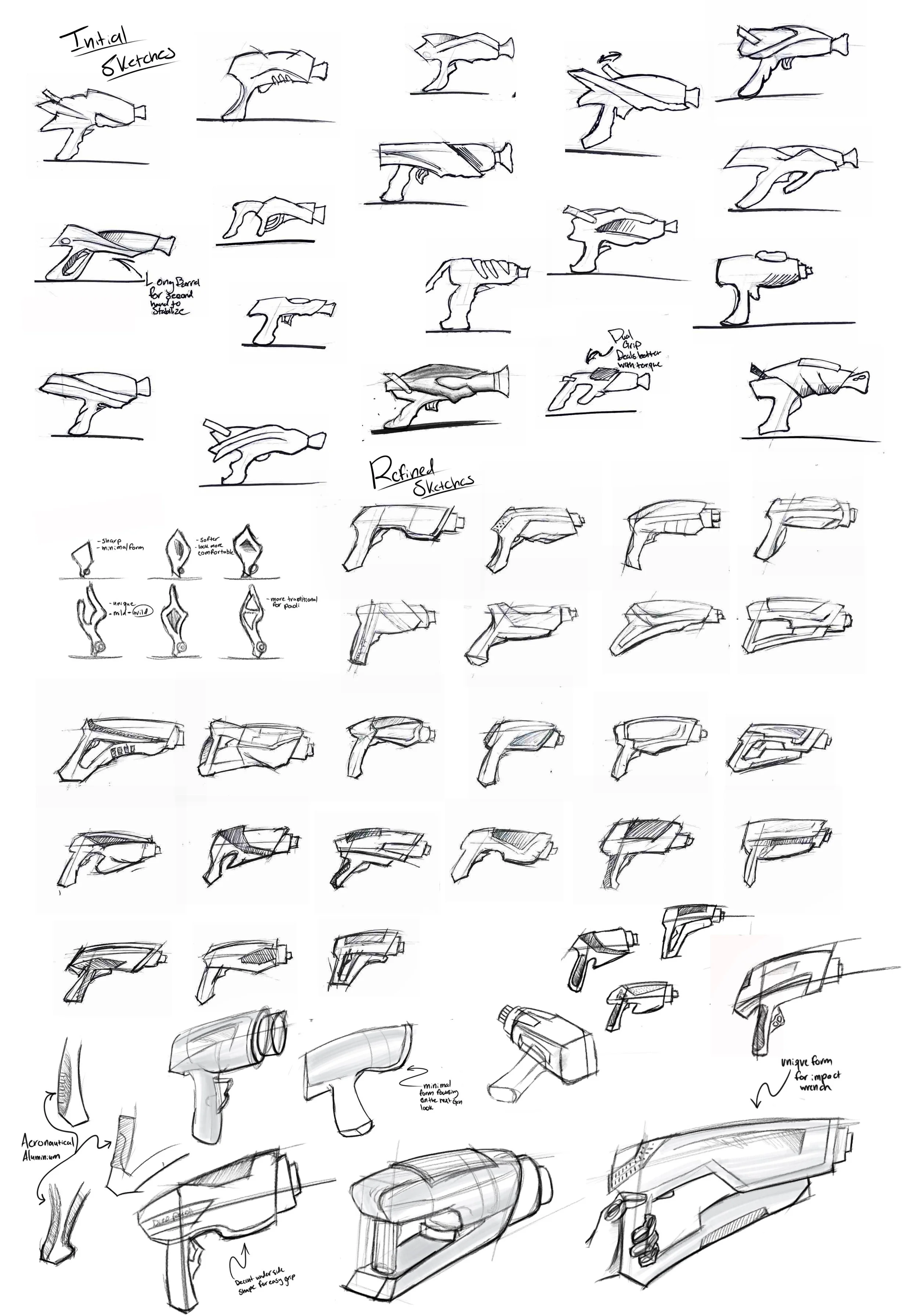

Ideation Sketches

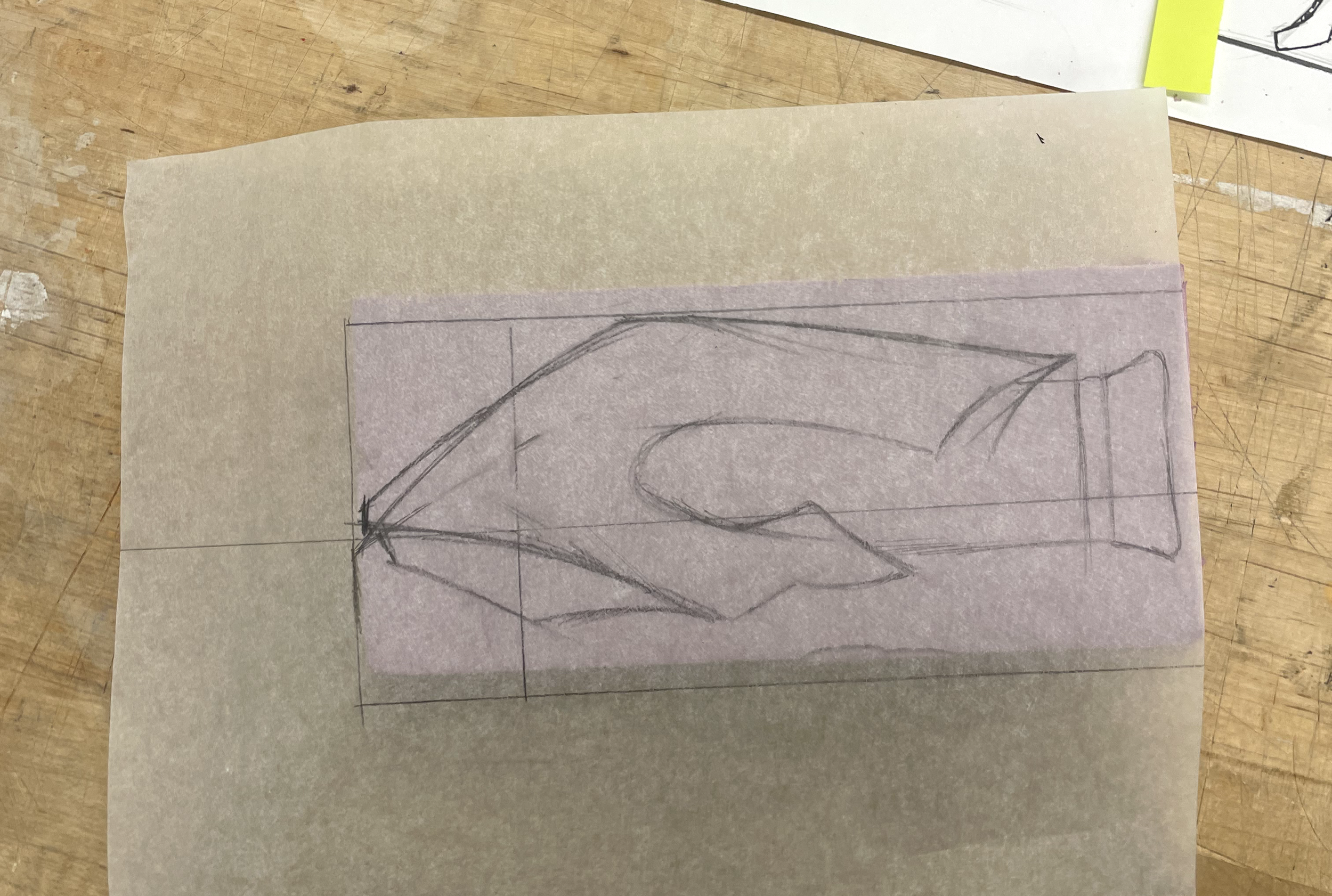

Foam Process

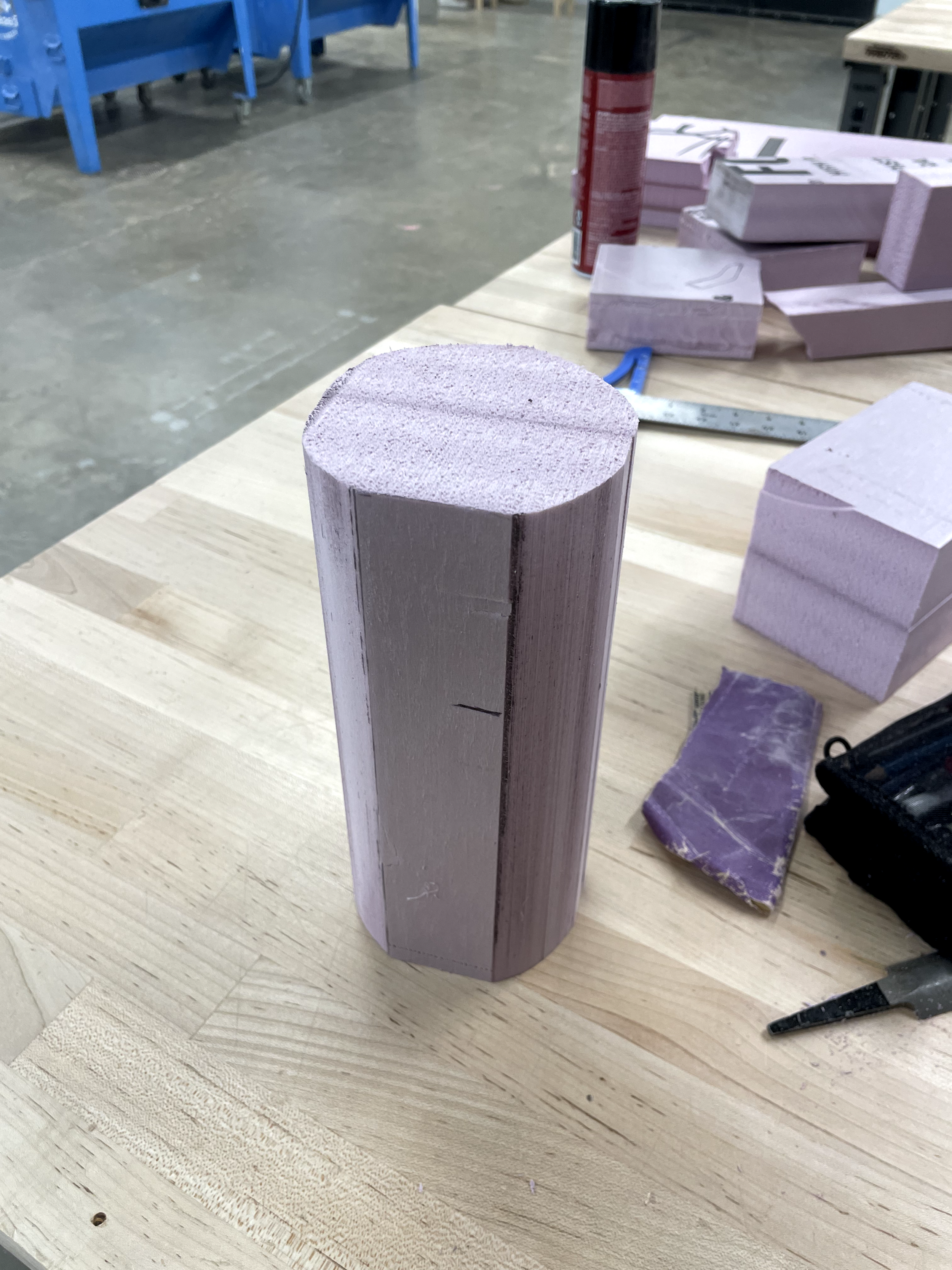

After the sketching phase foam models were made to make note of sizing and how the product looked in a physical sense.
Quick Mock-ups

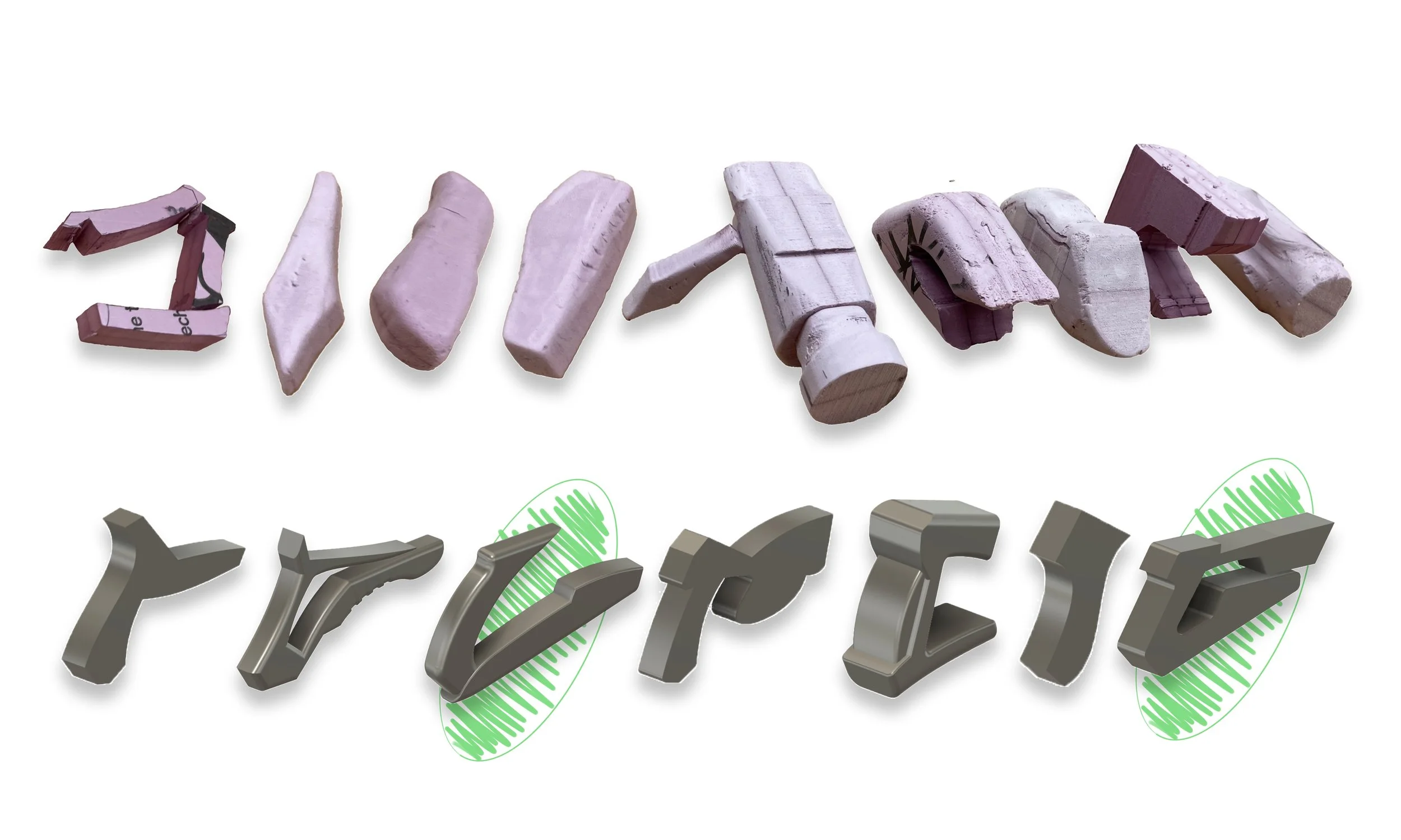

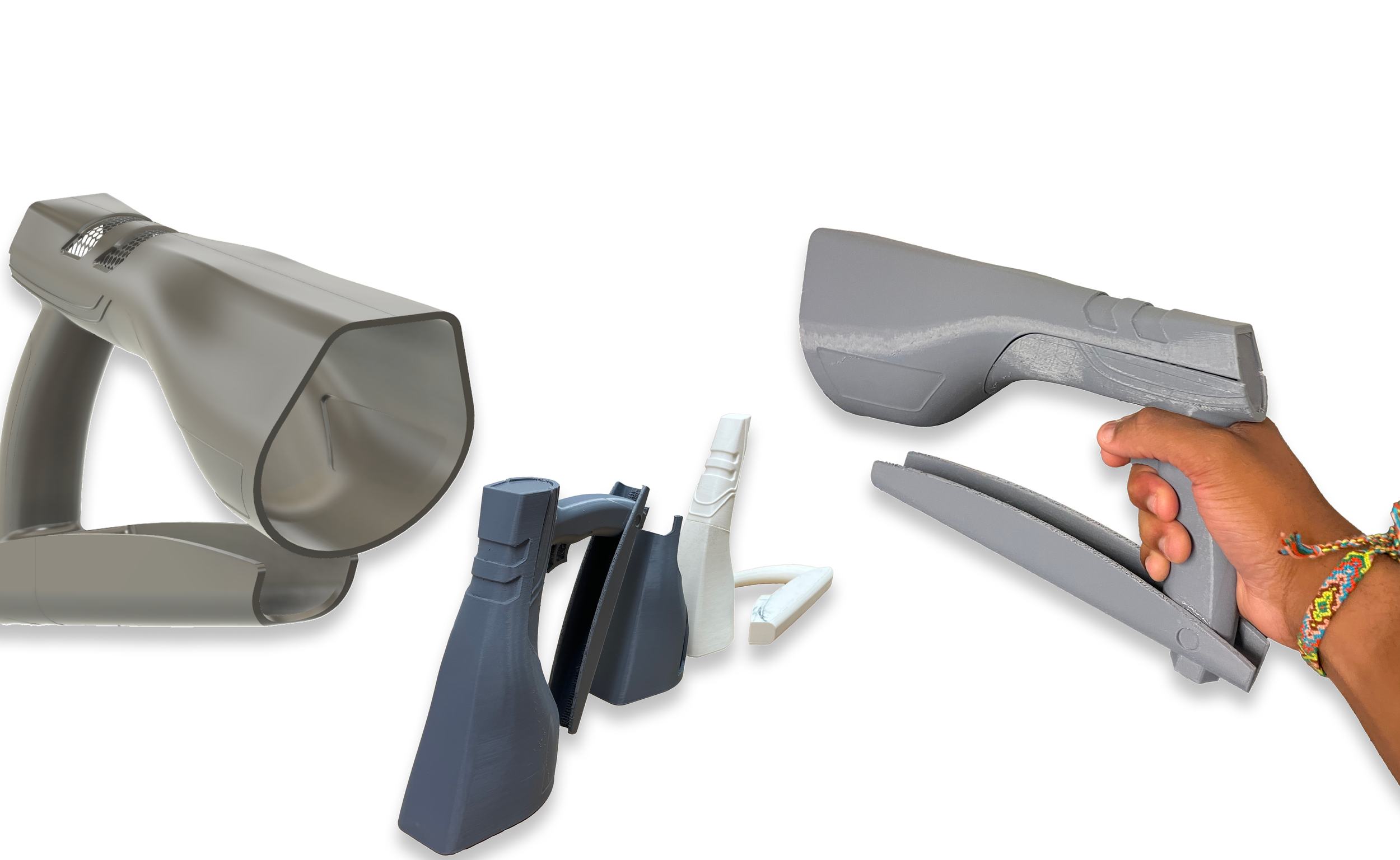

Different handle grip studies done out of foam and then translated into Fusion 360 for further development.

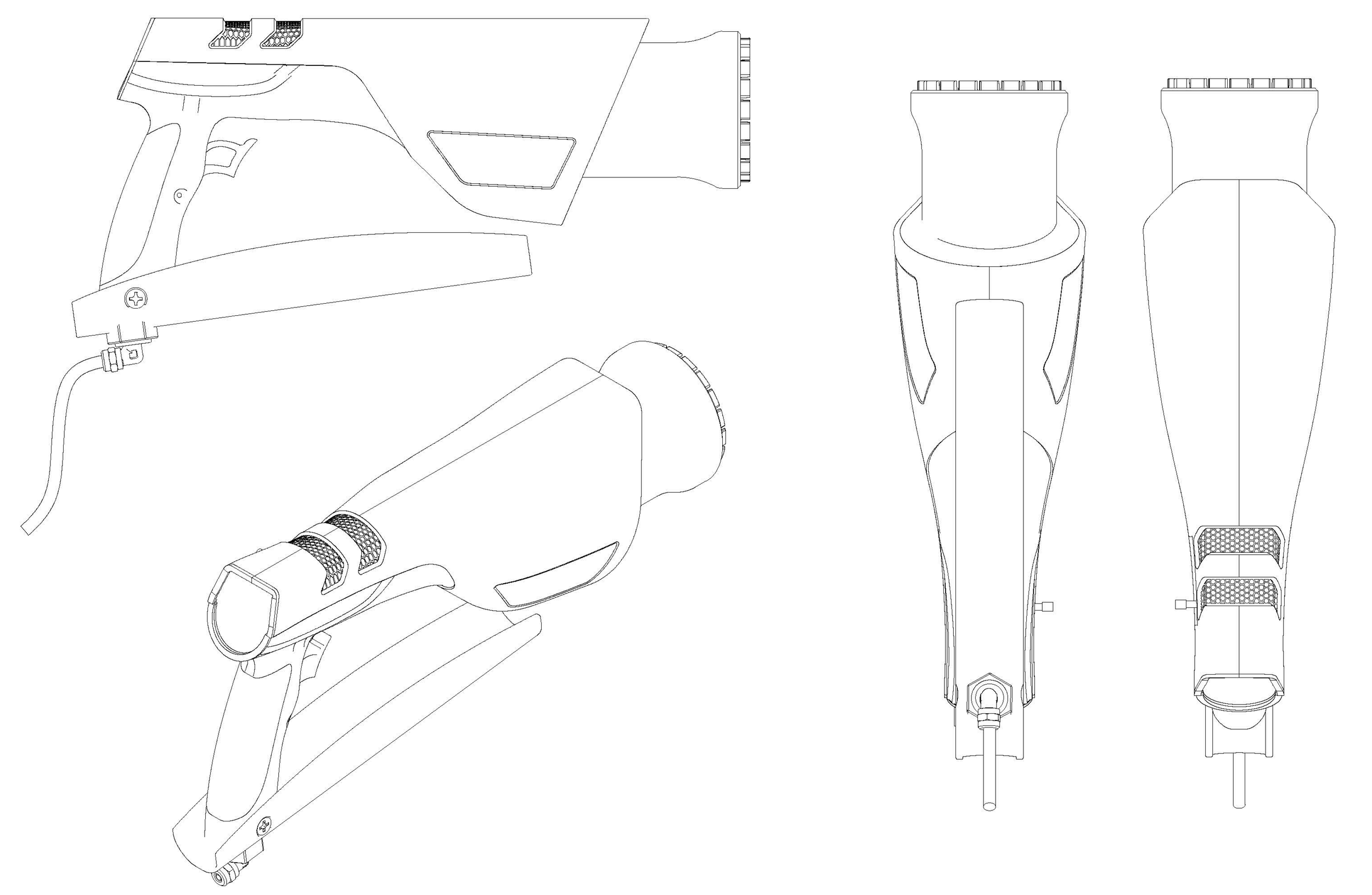

Model Refinement

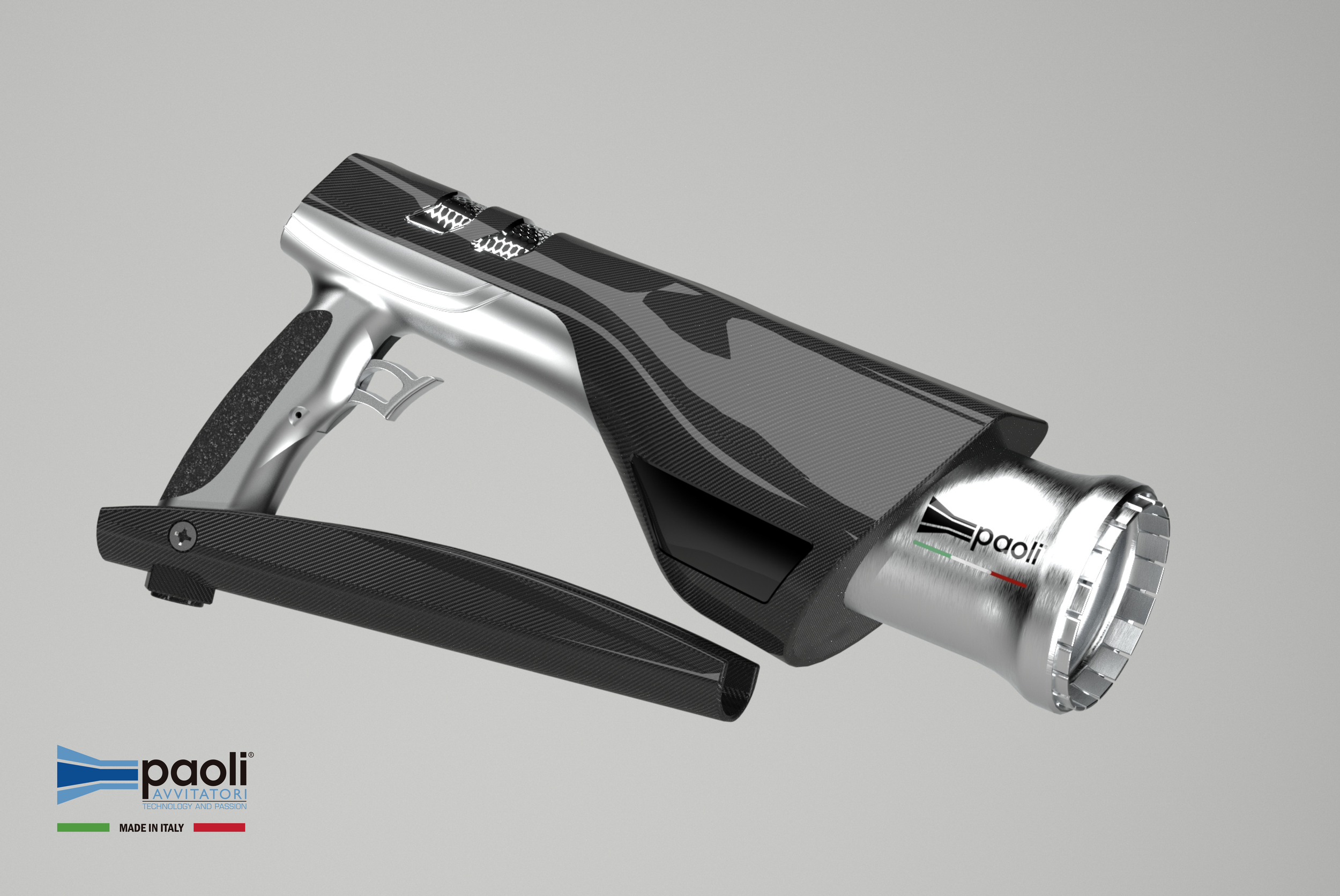

After coming to a finalized design, 3D printing became the next steps into refining and creating a final solution.
